Wave-compensating Drilling Rig

With the increasing of demand for refined offshore investigation and surveying and especially marine CPT service, the market demand for marine wave-compensating drilling rigs increases tremendously. Qingdao Binhai Investigation and Surveying Co., Ltd. (abbr. as “QBIS” or “The company” hereafter)  summarized nearly 30 years of experience in offshore drilling exploration, referred to advanced domestic and foreign technologies, and organized a backbone team to develop and manufacture a new type of modular wave-compensating drilling rig (Operational capability of offshore drilling: water depth + borehole depth can reach 600 m) as well as a new type of customized wave-compensating drilling rig (Operational capability of offshore CPT: water depth + borehole depth can reach 300 m).

The wave-compensating drilling rig system includes derrick, elevation and feeding system, elevation compensating system, power head, clamping and unclamping device, winch system, driller house and its supporting facilities, hydraulic power station system, mud pumps and its supporting facilities, mud tank system, and so on. The supporting system for CPT operation includes submarine baseplate and its elevation system, moon pool cover and its transfer system, and CPT drill rods and drill bits.

The drilling rig is characteristic of drilling downward with a power head, and compared with the traditional drilling rigs, it has the advantages as follows:

Good convenience in transportation and installation;

High safety in offshore operation;

High coring rate and accurate data;

Strong resistance against wind and waves and hence a high operation rate;

Wide adaptability and applicability in various marine geological investigation projects related to offshore wind power, marine geology, bridge, wharf and tunnel, etc.

So far, they have been applied to a number of professional exploration ships, and made outstanding contributions to the successful completion of relevant investigation projects, and hence widely recognized and praised by different investigation units and owner units.

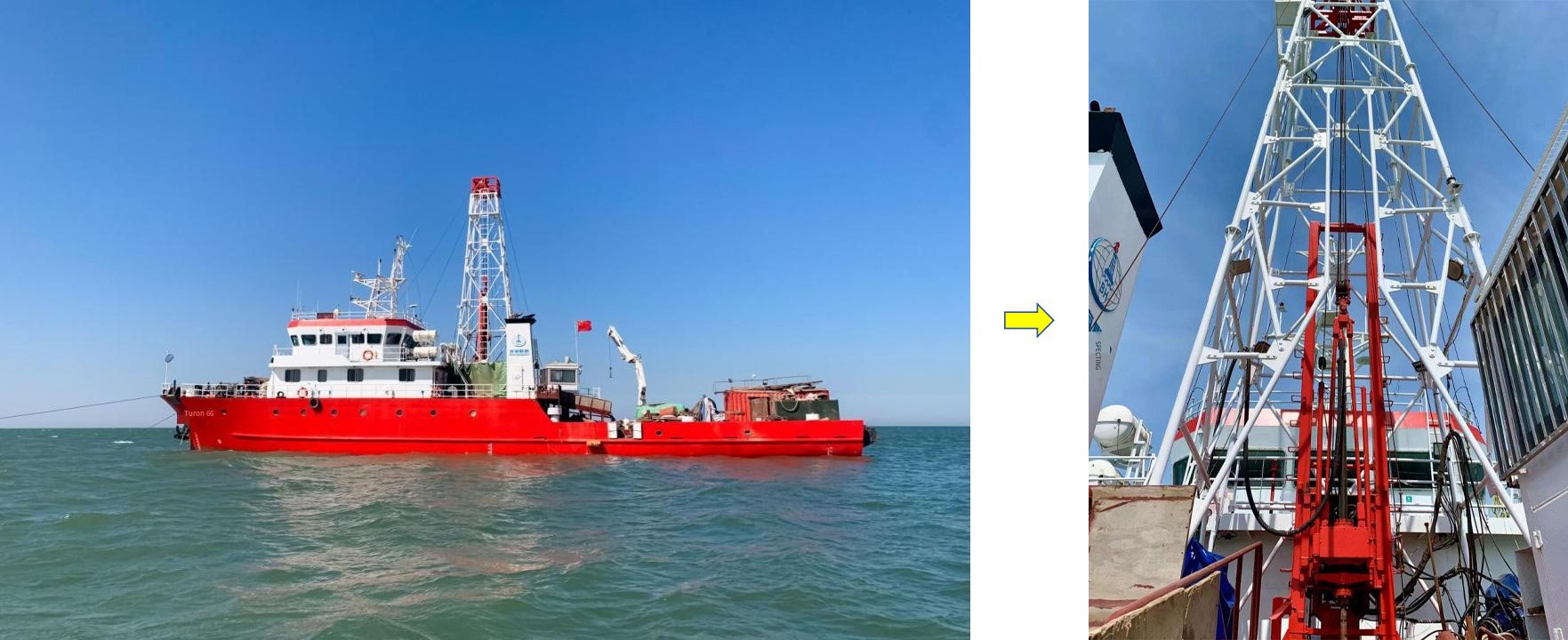

Binhai 66 Drilling Ship HYZ-500 Wave-compensating Drilling Rig

After the HYZ-500 wave-compensating drilling rig was installed on the Binhai 66 Drilling Ship, main achievements accomplished so far are listed as follows:

As an indispensable and important equipment of Binhai 66 Drilling Ship, HYZ-500 wave-compensating drilling rig has exhibited excellent performance and unique advantages in accomplishing various projects. Its highly-efficient working mode has greatly improved the execution efficiency of the projects, effectively shortened their construction period, and hence achieved considerable advantages in time and cost for the company. Its wide range of application enables it to operate stably under various geological conditions, effectively reducing risks and uncertainties. In actual operation, its wave compensation technology makes the drilling process more stable, greatly improves the quality of drilling exploration and the accuracy of data acquisition, and contributes significantly to the smooth progress and successful accomplishment of the projects.

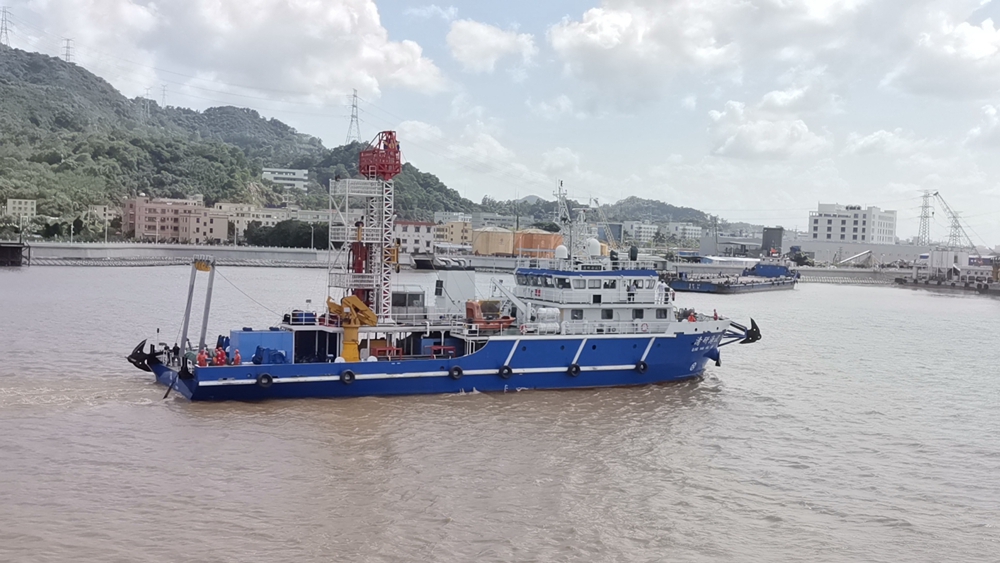

Binhai 67 Drilling Ship HYZ-500D67 Wave-compensating Drilling Rig

After the HYZ-500D67 wave-compensating drilling rig was installed on the Binhai 67 Drilling Ship, main achievements accomplished so far are listed as follows:

As an extremely-powerful tool of Binhai 67 Drilling Ship, HYZ-500D67 wave-compensating drilling rig has exhibited tremendously-high efficiency in accomplishing complex drilling tasks in a relatively short period of time, and hence provided strong support for the progress of the investigation projects. Its wide range of application enables it to operate stably under various geological conditions, effectively reducing risks and uncertainties. In actual operation, its wave compensation technology makes the drilling process more stable, greatly improves the quality of drilling exploration and the accuracy of data acquisition, and contributes significantly to the smooth progress and successful accomplishment of the projects.

As an indispensable and important equipment of Binhai 67 Drilling Ship, HYZ-500D67 wave-compensating drilling rig has exhibited excellent performance and unique advantages in accomplishing various projects. Its highly-efficient working mode has greatly improved the execution efficiency of the projects, effectively shortened their construction period, and hence achieved considerable advantages in time and cost for the company. Its wide range of application makes it not only perform well in conventional drilling work, but also show strong adaptability and stability in complex environment and special geological conditions, so much so that it has provided a strong guarantee for the successful implementation of all kinds of projects.

No.17 Marine Geological Investigation Ship  HYZ-500YT Wave-compensating Drilling Rig

The drilling rig, which is being installed and commissioned on the ship, will have a profound impact on the industry and propel it to a new development height. We firmly believe that through continuous innovation and technological breakthrough, this advanced rig technology will bring revolutionary changes to the industry, which will definitely introduce a strong impetus into the fields of geological survey and new energy exploration, and create a more brilliant perspective.

A Scientific Research Ship  BH-600 Wave-compensating Drilling Rig

 This drilling rig is still under intensive research and development. Its construction will inject new vitality into the investigation industry. Its advanced technology and efficient performance will greatly improve the efficiency and safety of drilling operations, so as to promote the entire industry towards a more modern and sustainable future. Let us look forward to its birth, and hope that it will bring us a beautiful and bright prospect.
